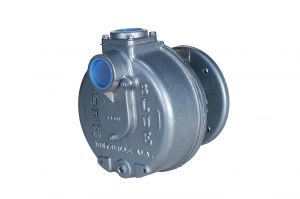

CDS/JB Wet Seal Transfer Pumps for Electric Motors
contact us print this listing

Product Name Part # Price Qty
2-inch Straight Pump; 3/4-inch shaft S-3220-E $1,132.00
3-inch Straight Pump; 1-1/8-inch shaft S-3320-E $1,525.00
2-inch Self-Priming; 3/4-inch shaft SP-3220-E $1,431.50
3-inch Self-Priming; 1-1/8-inch shaft SP-3320-E $1,869.75



More Information

Description

Cap.

GPM

Max

PSI

Max

RPM

Recommended

Min HP

2" Straight Pumps

197

39

3500

5

3" Straight Pumps

365

60

3500

10

2" Self-Priming Pumps

152

42

3500

5

3" Self-Priming Pumps

308

65

3500

10









  • May be operated DRY without damaging the sealsDouble, wetted seals are continuously lubricated to reduce wear.
  • Patented Vac-U-Seal design eliminates pressure on the seal by
  • creating a vacuum around the seal.
  • Heavy cast iron construction for extended service life.
  • Closed impeller design minimizes thrust loading on the drive motor,
  • extending its service life.
  • HINT: Both Straight and Self-Priming pumps incorporate the double wetted
  • seals. Straight pumps, which have a greater capacity, should be used only in applications where the pump is sure to be fully charged with head pressure. Otherwise, use a self-priming pump.
