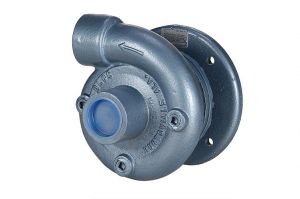

CDS/JB Wet Seal Transfer Pumps for Gas Engines
contact us print this listing

Product Name Part # Price Qty
2-inch Straight Pump; 3/4-inch female shaft S-3220 $1,070.00
3-inch Straight Pump; 1-inch female shaft S-3320-BS $1,543.75
3-inch Straight Pump; 1-1/8 inch female shaft S-3320 $1,539.10
2-inch Self-Priming; 3/4-inch female shaft SP-3220 $1,344.40
3-inch Self-Priming; 1-inch female shaft SP-3320-BS $1,854.30
3-inch Self-Priming; 1-1/8 inch female shaft SP-3320 $1,893.35
Base for 2-inch pumps (required for gas engines) S-3321 $264.54
Base for 3-inch pumps (required for gas engines) S-3336 $446.94



More Information

197 GPM - 3500 max RPM - min 5 hp

Description

Cap.

GPM

Max

PSI

Max

RPM

Recommended

Min HP

2" Straight Pumps

197

39

3500

5

3" Straight Pumps

365

60

3500

10

2" Self-Priming Pumps

152

42

3500

5

3" Self-Priming Pumps

308

65

3500

10









  • May be operated DRY without damaging the sealsDouble, wetted seals are continuously lubricated to reduce wear.
  • Patented Vac-U-Seal design eliminates pressure on the seal by
  • creating a vacuum around the seal.
  • Heavy cast iron construction for extended service life.
  • Closed impeller design minimizes thrust loading on the drive motor,
  • extending its service life.
  • HINT: Both Straight and Self-Priming pumps incorporate the double wetted
  • seals. Straight pumps, which have a greater capacity, should be used only in applications where the pump is sure to be fully charged with head pressure. Otherwise, use a self-priming pump.
