COMPACT! FAST! EASY-TO-USE!

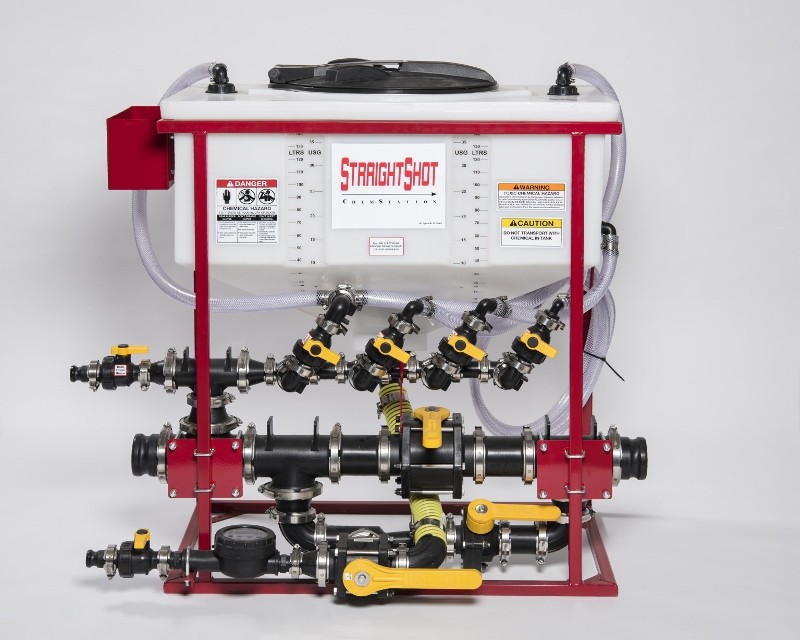

The StraightShot Chemstation was developed to provide the user with the fastest delivery of chemical to the sprayer for faster turnarounds in the field. Through its industry-leading venturi, it eliminates the need for a transfer pump to pump bulk chemicals from totes, shuttles or barrels. It is up to 30% faster at delivering chemical than competitive brands, and takes up to 28% less space on the deck than similarly-sized systems.
The SS jug-slitting knife assembly makes emptying jugs fast and easy, and allows the user to rinse the jugs out for safe disposal.
With a plumbing system perfected in the field, the StraightShot ChemStation has been designed with the user in mind.
- Designed to deliver unsurpassed speed.
- Designed to take up less space on the deck.
- And designed for easier access by the user.
Equipped with Banjo manifold fittings, and the familiar jug-slitter knife, this ChemStation can handle everything you can throw at it - whether it is jugs, barrels, totes, or powders.
Check out all the standard features of the new StraightShot ChemStation:
- The fill line through the ChemStation is a straight shot through to the sprayer - no elbows or turns of any kind to decrease fill time.
- High-Speed venturi will induct chemical up to 30% faster than previous products.
- Back-sloping tank design allows most of the plumbing to be tucked under the tank to save deck space - about 25% less than previous products take up.
- All controls are on the front where the user can easily get at them.
- Equipped standard with not one, but TWO tank rinsers on either side of the tank. The rinsers provide better rinse action to the top of the tank as well as out and down. Using two rinsers means that not only will the tank be rinsed better, the knife system will also be better-rinsed of chemical.
- 3-inch Plumbing standard (2" hose connections on request).
- Choice of 44 US gallon (167 Litre) or 67 US gallon (255 Litre) tank capacity.
- 16-inch Hinged Lid standard.
- Jug Rinser standard.
- Tank Fill / Agitator standard.
- Fresh water valve with 10-feet of hose for general cleanup/rinsing standard.
- Steel frame with powder-coated paint standard! Steel utility box for anti-foamer/tools included standard.
The StraightShot is available either with or without our Bulk Induction Metering System (BIMS). The BIMS allows the user to meter chemical directly into the flow line to the sprayer using the venturi to pull even the most viscose chemicals from totes or barrels and eliminating the need for a herbicide pump. The Air-Sensing Sotera 850 meter is included with the BIMS. Also included with a BIMS is a separate flow line which allows you to detach the hose from the bulk container, and connect that hose to the StraightShot to rinse it out with a turn of a valve.
An optional 3-TOTE Induction Kit is available which allows you to connect up to 3 totes or shuttles simultaneously to the StraightShot and choose which one you want to draw from with the turn of a valve.
For 2023, we are now also offering a meter upgrade to an Oval Gear FlowMeter. This is a positive displacement meter which is accurate to within 0. 5%. It requires NO calibration, and is unaffected by changes in ambient temperatures. Available in 1" and 1-1/2" ports. Call for details.
|
