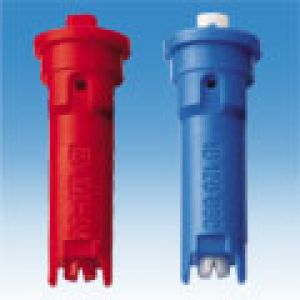

Lechler Air Induction (ID) Tips


Product Name

Part #

Price
80º Air Induction tip/cap/gasket; 01 Orange ID80-01 $6.76
80º Air Induction tip/cap/gasket; 015 Green ID80-015 $6.76
80º Air Induction tip/cap/gasket; 02 Yellow ID80-02 $6.76
80º Air Induction tip/cap/gasket; 025 Violet ID80-025 $6.76
80º Air Induction tip/cap/gasket; 03 Bue ID80-03 $6.76
80º Air Induction tip/cap/gasket; 04 Red ID80-04 $6.76
80º Air Induction tip/cap/gasket; 05 Brown ID80-05 $6.76
80º Air Induction tip/cap/gasket; 06 Grey ID80-06 $6.76
80º Air Induction tip/cap/gasket; 08 White ID80-08 $6.76
110º Air Induction tip/cap/gasket; 01 Orange ID110-01 $6.76
110º Air Induction tip/cap/gasket; 015 Green ID110-015 $6.76
110º Air Induction tip/cap/gasket; 02 Yellow ID110-02 $6.76
110º Air Induction tip/cap/gasket; 025 Violet ID110-025 $6.76
110º Air Induction tip/cap/gasket; 03 Blue ID110-03 $6.76
110º Air Induction tip/cap/gasket; 04 Red ID110-04 $6.76
110º Air Induction tip/cap/gasket; 05 Brown ID110-05 $6.76
110º Air Induction tip/cap/gasket; 06 Grey ID110-06 $6.76
110º Air Induction tip/cap/gasket; 08 White ID110-08 $6.76
80º Air Induction tip/cap/gasket; ceramic; 01 Orange ID80-01C $13.94
80º Air Induction tip/cap/gasket; ceramic; 02 Yellow ID80-02C $13.94
80º Air Induction tip/cap/gasket; ceramic; 025 Violet ID80-025C $13.94
80º Air Induction tip/cap/gasket; ceramic; 03 Blue ID80-03C $13.94
80º Air Induction tip/cap/gasket; ceramic; 04 Red ID80-04C $13.94
80º Air Induction tip/cap/gasket; ceramic; 05 Brown ID80-05C $13.94
80º Air Induction tip/cap/gasket; ceramic; 06 Grey ID80-06C $13.94
80º Air Induction tip/cap/gasket; ceramic; 08 White ID80-08C $13.94
110º Air Induction tip/cap/gasket; ceramic; 01 Orange ID110-01C $13.94
110º Air Induction tip/cap/gasket; ceramic; 015 Green ID110-015C $13.94
110º Air Induction tip/cap/gasket; ceramic; 02 Yellow ID110-02C $13.94
110º Air Induction tip/cap/gasket; ceramic; 025 Violet ID110-025C $13.94
110º Air Induction tip/cap/gasket; ceramic; 03 Blue ID110-03C $13.94
110º Air Induction tip/cap/gasket; ceramic; 04 Red ID110-04C $13.94
110º Air Induction tip/cap/gasket; ceramic; 06 Grey ID110-06C $13.94
110º Air Induction tip/cap/gasket; ceramic; 08 White ID110-08C $13.94
Contact to order


Please reference part # ID110-08C when
you get in touch. Thank you!

More Information

Type:                Air induction flat spray tip

Tip Sizes:          01 - 08

Pressure:          40 - 200 psi

Spray angle:     80º and 110º

Drift potential:    extremely low

Material:            polymer, ceramic (up to 10 times the life of polymer)


  • sturdy design and two aeration orifices (venturi design) with round bores eliminate clogging, add durability
  • very good canopy penetration and deposit pattern
  • operable in winds up to 10 mph
  • produce large uniform aerated droplets
  • Injector easily removed for cleaning
  • easy installation; no adapter needed
  • efficacy comparable to conventional flat spray tip
