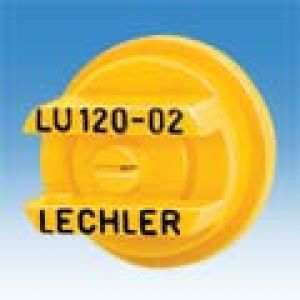

Lechler Extended Range (LU) Tips


Product Name

Part #

Price

80º Extended Range Tip; 01 Orange LU80-01 $3.05
80º Extended Range Tip; 015 Green LU80-015 $3.05
80º Extended Range Tip; 02 Yellow LU80-02 $3.05
80º Extended Range Tip; 025 Violet LU80-025 $3.05
80º Extended Range Tip; 03 Blue LU80-03 $3.05
80º Extended Range Tip; 04 Blue LU80-04 $3.05
80º Extended Range Tip; 05 Brown LU80-05 $3.05
80º Extended Range Tip; 06 Grey LU80-06 $3.05
80º Extended Range Tip; 08 White LU80-08 $3.05
110º Extended Range Tip; 01 Orange LU110-01 $3.05
110º Extended Range Tip; 015 Green LU110-015 $3.05
110º Extended Range Tip; 02 Yellow LU110-02 $3.05
110º Extended Range Tip; 025 Violet LU110-025 $3.05
110º Extended Range Tip; 03 Blue LU110-03 $3.05
110º Extended Range Tip; 04 Red LU110-04 $3.05
110º Extended Range Tip; 05 Brown LU110-05 $3.05
110º Extended Range Tip; 06 Grey LU110-06 $3.05
110º Extended Range Tip; 08 White LU110-08 $3.05
80º Extended Range Tip; ceramic; 01 Orange LU80-01C $5.49
80º Extended Range Tip; ceramic; 015 Green LU80-015C $5.49
80º Extended Range Tip; ceramic; 02 Yellow LU80-02C $5.49
80º Extended Range Tip; ceramic; 025 Violet LU80-025C $5.49
80º Extended Range Tip; ceramic; 03 Blue LU80-03C $5.49
80º Extended Range Tip; ceramic; 04 Red LU80-04C $5.49
80º Extended Range Tip; ceramic; 05 Brown LU80-05C $5.49
80º Extended Range Tip; ceramic; 06 Grey LU80-06C $5.49
80º Extended Range Tip; ceramic; 08 White LU80-08C $5.49
110º Extended Range Tip; ceramic; 01 Orange LU110-01C $5.49
110º Extended Range Tip; ceramic; 015 Green LU110-015C $5.49
110º Extended Range Tip; ceramic; 02 Yellow LU110-02C $5.49
110º Extended Range Tip; ceramic; 025 Violet LU110-025C $5.49
110º Extended Range Tip; ceramic; 03 Blue LU110-03C $5.49
110º Extended Range Tip; ceramic; 04 Red LU110-04C $5.49
110º Extended Range Tip; ceramic; 05 Brown LU110-05C $5.49
110º Extended Range Tip; ceramic; 06 Grey LU110-06C $5.49
110º Extended Range Tip; ceramic; 08 White LU110-08C $5.49
Contact to order


Please reference part # LU110-08C when
you get in touch. Thank you!

More Information

Type:                multi-range flat spray tip

Tip Sizes:          015 - 08

Pressure:          15 - 90 psi

Spray angle:     80º & 110º

Drift potential:    low - medium

Material:            polymer, Stainless Steel, ceramic


Adapts to specific applications with changing pressure:

  • lower pressures result in larger drops for uniform coverage
  • higher pressure delivers smaller drops for thorough coverage
