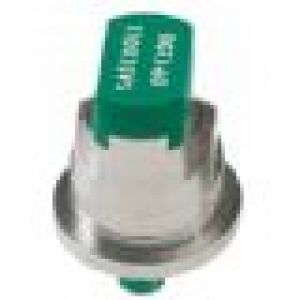

DriftGuard TwinJet Tips
Please reference part # DGTJ60-11008VS when
you get in touch. Thank you!
More Information
- Developed as another alternative for fungicide spraying
- Improved drift control and better penetration in dense canopies
- Colour-coded pre-orifice is removable for any necessary cleaning operations
- Twin fan sprays to improve coverage
- Automatic spray alignment with 25611-*-NYR Quick TeeJet®
Available in 015, 02, 03, 04, 06, and 08
Rate Chart
Tip Selection Chart for broadcast application tips
Tip Size |
PSI |
GPM |
US GALLONS PER ACRE based on 20" spacing |
||||||||||
4 mph |
5 mph |
6 mph |
7 mph |
8 mph |
9 mph |
10 mph |
12 mph |
14 mph |
16 mph |
18 mph |
|||
ORANGE 01 |
20 |
.071 |
5.3 |
4.2 |
3.5 |
3.0 |
2.6 |
2.3 |
2.1 |
1.8 |
1.5 |
1.3 |
1.2 |
30 |
.087 |
6.5 |
5.2 |
4.3 |
3.7 |
3.2 |
2.9 |
2.6 |
2.2 |
1.8 |
1.6 |
1.4 |
|
40 |
.10 |
7.4 |
5.9 |
5.0 |
4.2 |
3.7 |
3.3 |
3.0 |
2.5 |
2.1 |
1.9 |
1.7 |
|
50 |
.11 |
8.2 |
6.5 |
5.4 |
5.7 |
4.1 |
3.6 |
3.3 |
2.7 |
2.3 |
2.0 |
1.8 |
|
60 |
.12 |
8.9 |
7.1 |
5.9 |
5.1 |
4.5 |
4.0 |
3.6 |
3.0 |
2.5 |
2.2 |
2.0 |
|
75 |
.14 |
10.4 |
8.3 |
6.9 |
5.9 |
5.2 |
4.6 |
4.2 |
3.5 |
3.0 |
2.6 |
2.3 |
|
90 |
.15 |
11.1 |
8.9 |
7.4 |
6.4 |
5.6 |
5.0 |
4.5 |
3.7 |
3.2 |
2.8 |
2.5 |
|
GREEN 015 |
20 |
.11 |
8.2 |
6.5 |
5.4 |
4.7 |
4.1 |
3.6 |
3.3 |
2.7 |
2.3 |
2.0 |
1.8 |
30 |
.13 |
9.7 |
7.7 |
6.4 |
5.5 |
4.8 |
4.3 |
3.9 |
3.2 |
2.8 |
2.4 |
2.1 |
|
40 |
.15 |
11.1 |
8.9 |
7.4 |
6.4 |
5.6 |
5.0 |
4.5 |
3.7 |
3.2 |
2.8 |
2.5 |
|
50 |
.17 |
12.6 |
10.1 |
8.4 |
7.2 |
6.3 |
5.6 |
5.0 |
4.2 |
3.6 |
3.2 |
2.8 |
|
60 |
.18 |
13.4 |
10.7 |
8.9 |
7.6 |
6.7 |
5.9 |
5.3 |
4.5 |
3.8 |
3.3 |
3.0 |
|
70 |
.20 |
14.9 |
11.9 |
9.9 |
8.5 |
7.4 |
6.6 |
5.9 |
5.0 |
4.2 |
3.7 |
3.3 |
|
80 |
.21 |
15.6 |
12.5 |
10.4 |
8.9 |
7.8 |
6.9 |
6.2 |
5.2 |
4.5 |
3.9 |
3.5 |
|
YELLOW 02 |
20 |
.14 |
10.4 |
8.3 |
6.9 |
5.9 |
5.2 |
4.6 |
4.2 |
3.5 |
3.0 |
2.6 |
2.3 |
30 |
.17 |
12.6 |
10.1 |
8.4 |
7.2 |
6.3 |
5.6 |
5.0 |
4.2 |
3.6 |
3.2 |
2.8 |
|
40 |
.20 |
14.9 |
11.9 |
9.9 |
8.5 |
7.4 |
6.6 |
5.9 |
5.0 |
4.2 |
3.7 |
3.3 |
|
50 |
.22 |
16.3 |
13.1 |
10.9 |
9.3 |
8.2 |
7.3 |
6.5 |
5.4 |
4.7 |
4.1 |
3.6 |
|
60 |
.24 |
17.8 |
14.3 |
11.9 |
10.2 |
8.9 |
7.9 |
7.1 |
5.9 |
5.1 |
4.5 |
4.0 |
|
70 |
.26 |
19.3 |
15.4 |
12.9 |
11.0 |
9.7 |
8.6 |
7.7 |
6.4 |
5.5 |
4.8 |
4.3 |
|
80 |
.28 |
20.8 |
16.6 |
13.9 |
11.9 |
10.4 |
9.2 |
8.3 |
6.9 |
5.9 |
5.2 |
4.6 |
|
TEAL 025 |
20 |
.18 |
13.1 |
10.5 |
8.8 |
7.5 |
6.6 |
5.8 |
5.3 |
4.4 |
3.8 |
3.3 |
2.9 |
30 |
.22 |
16.1 |
12.9 |
10.7 |
9.2 |
8.0 |
7.1 |
6.4 |
5.4 |
4.6 |
4.0 |
3.6 |
|
40 |
.25 |
18.6 |
14.9 |
12.4 |
10.6 |
9.3 |
8.3 |
7.4 |
6.2 |
5.3 |
4.6 |
4.1 |
|
50 |
.28 |
20.8 |
16.6 |
13.9 |
11.9 |
10.4 |
9.2 |
8.3 |
6.9 |
5.9 |
5.2 |
4.6 |
|
60 |
.31 |
23.0 |
18.4 |
15.3 |
13.2 |
11.5 |
10.2 |
9.2 |
7.7 |
6.6 |
5.8 |
5.1 |
|
70 |
.33 |
24.5 |
19.6 |
16.3 |
14.0 |
12.3 |
10.9 |
9.8 |
8.2 |
7.0 |
6.1 |
5.4 |
|
80 |
.35 |
26.0 |
20.8 |
17.3 |
14.9 |
13.0 |
11.6 |
10.4 |
8.7 |
7.4 |
6.5 |
5.8 |
|
BLUE 03 |
20 |
.21 |
15.6 |
12.5 |
10.4 |
8.9 |
7.8 |
6.9 |
6.2 |
5.2 |
4.5 |
3.9 |
3.5 |
30 |
.26 |
19.3 |
15.4 |
12.9 |
11.0 |
9.7 |
8.6 |
7.7 |
6.4 |
5.5 |
4.8 |
4.3 |
|
40 |
.30 |
22.3 |
17.8 |
14.9 |
12.7 |
11.1 |
9.9 |
8.9 |
7.4 |
6.4 |
5.6 |
5.0 |
|
50 |
.34 |
25.2 |
20.2 |
16.8 |
14.4 |
12.6 |
11.2 |
10.1 |
8.4 |
7.2 |
6.3 |
5.6 |
|
60 |
.37 |
27.5 |
22.0 |
18.3 |
15.7 |
13.7 |
12.2 |
11.0 |
9.2 |
7.8 |
6.9 |
6.1 |
|
70 |
.40 |
29.7 |
23.8 |
19.8 |
17.0 |
14.9 |
13.2 |
11.9 |
9.9 |
8.5 |
7.4 |
6.6 |
|
80 |
.42 |
31.2 |
24.9 |
20.8 |
17.8 |
15.6 |
13.9 |
12.5 |
10.4 |
8.9 |
7.8 |
6.9 |
|
RED 04 |
20 |
.28 |
20.8 |
16.6 |
13.9 |
11.9 |
10.4 |
9.2 |
8.3 |
6.9 |
5.9 |
5.2 |
4.6 |
30 |
.35 |
26.0 |
20.8 |
174.3 |
14.9 |
13.0 |
11.6 |
10.4 |
8.7 |
7.4 |
6.5 |
5.8 |
|
40 |
.40 |
29.7 |
23.8 |
19.8 |
17.0 |
14.9 |
13.2 |
11.9 |
9.9 |
8.5 |
7.4 |
6.6 |
|
50 |
.45 |
33.4 |
26.7 |
22.3 |
19.1 |
16.7 |
14.9 |
13.4 |
11.1 |
9.5 |
8.4 |
7.4 |
|
60 |
.49 |
36.4 |
29.1 |
24.3 |
20.8 |
18.2 |
16.2 |
14.6 |
12.1 |
10.4 |
9.1 |
8.1 |
|
70 |
.53 |
39.4 |
31.5 |
26.2 |
22.5 |
19.7 |
17.5 |
15.7 |
13.1 |
11.2 |
9.8 |
8.7 |
|
80 |
.57 |
42.3 |
33.9 |
28.2 |
24.2 |
21.2 |
18.8 |
16.9 |
14.1 |
12.1 |
10.6 |
9.4 |
|
BROWN 05 |
20 |
.35 |
26.0 |
20.8 |
17.3 |
14.9 |
13.0 |
11.6 |
10.4 |
8.7 |
7.4 |
6.5 |
5.8 |
30 |
.43 |
31.9 |
25.5 |
21.3 |
18.2 |
16.0 |
14.2 |
12.8 |
10.6 |
9.1 |
8.0 |
7.1 |
|
40 |
.50 |
37.1 |
29.7 |
24.8 |
21.2 |
18.6 |
16.5 |
14.9 |
12.4 |
10.6 |
9.3 |
8.3 |
|
50 |
.56 |
41.6 |
33.3 |
27.7 |
23.8 |
20.8 |
18.5 |
16.6 |
13.9 |
11.9 |
10.4 |
9.2 |
|
60 |
.61 |
45.3 |
36.2 |
30.2 |
25.9 |
22.3 |
20.1 |
18.1 |
15.1 |
12.9 |
11.3 |
10.1 |
|
70 |
.66 |
49.0 |
39.2 |
32.7 |
28.0 |
24.5 |
21.8 |
19.6 |
16.3 |
14.0 |
12.3 |
10.9 |
|
80 |
.71 |
52.7 |
42.2 |
35.1 |
30.1 |
26.4 |
23.4 |
21.1 |
17.6 |
15.1 |
13.2 |
11.7 |
|
GRAY 06 |
20 |
.42 |
31.2 |
24.9 |
20.8 |
17.8 |
15.6 |
13.9 |
12.5 |
10.4 |
8.9 |
7.8 |
6.9 |
30 |
.52 |
38.6 |
30.9 |
25.7 |
22.1 |
19.3 |
17.2 |
15.4 |
12.9 |
11.0 |
9.7 |
8.6 |
|
40 |
.60 |
44.6 |
35.6 |
29.7 |
25.5 |
22.3 |
19.8 |
17.8 |
14.9 |
12.7 |
11.1 |
9.9 |
|
50 |
.67 |
49.7 |
39.8 |
33.2 |
28.4 |
24.9 |
22.1 |
19.9 |
16.6 |
14.2 |
12.4 |
11.1 |
|
60 |
.73 |
54.2 |
43.4 |
36.1 |
31.0 |
27.1 |
24.1 |
21.7 |
18.1 |
15.5 |
13.6 |
12.0 |
|
